A New LED Aluminum Worklight by LIGHTINGALE®

回転盤の上に配置されたケーキと鳥のイラスト。

▲ LIGHITNGALE® "Blacksmith"

■ ハンディサイズに凝縮されたPRO仕様スペック

コンパクトサイズながら、ハイエンドLEDコンビネーションにより100%点灯時ではなんと 【1750ルーメン】 の明るさを実現。 日本の素材メーカーTEIJIN製素材のランプシェードを採用した均一で無駄のない光は、まさに投光器並の明るさを実現。

プロ仕様の光源として、作業現場や、撮影ロケでの拠点の灯りに、車に常備して非常時の点検用から発煙筒の代用まで、マルチな機能で様々なシーンにフィットするライティンゲイル のマルチワークライト「BLACKSMITH/ブラックスミス」

付属充電池はスマホ等USB機器に給電もできるLighitngaleの最新モデル(※1)のため、100%点灯時でも約3.5時間の連続点灯、また10%点灯時には、約80時間連続点灯が可能です。 ※付属電池 : LTG0001[3400mAh]充電池

明るさは、無段階に調整可能なため、シーンに合わせて必要な明るさに調整して使用することができます。

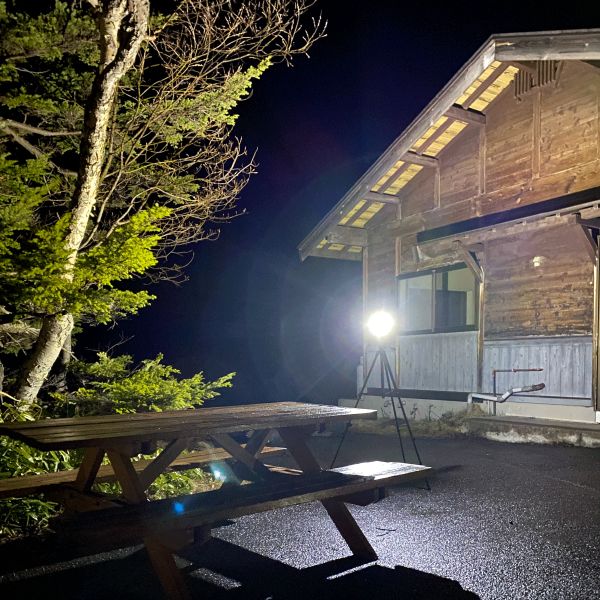

▲ Small but incredibly powerful worklight with up to 1750LM

■ What are the Blacksmith advantages?

Blacksmith is not only compact but also a powerful LED lantern. It delivers an incredible 1030Lm in brightness with its relatively small build.


Despite its compact size, this high-end LED combination delivers an impressive 1750 lumens of brightness at 100% brightness.

The lampshade, made from materials by the Japanese material manufacturer TEIJIN, provides uniform and efficient light, achieving brightness comparable to a floodlight.

As a professional-grade light source, the Lightingale "BLACKSMITH" multi-work light fits various scenes with its multi-functional capabilities, from work sites and location lighting to being kept in a car for emergency inspections and even as a substitute for flares. The included rechargeable battery is Lightingale's latest model , which can also power USB devices such as smartphones, allowing for approximately

3.5 hours of continuous illumination at 100% brightness and approximately

80 hours at 10% brightness.

Included battery: LTG0001 [3400mAh] rechargeable battery.

■ 明るさ最大1750LM コンパクトボディに驚きの性能!

■ 明るさ最大1750LM コンパクトボディに驚きの性能!

■ 明るさ最大1750LM コンパクトボディに驚きの性能!

ハンディサイズのライトとしては、トップクラスの明るさですが、360度照射できるBlacksmithは使い勝手が別格です。

『最大1750ルーメンの 白色LED』『数キロ先からも視認できる 赤色LED』どちらの点灯状態からでもスイッチを『長押し』することで、 無段階に明るさを調整できます。 消灯後に再度使用する際には、前回の明るさを記憶していますので、一度調整すれば、お好みの明るさでいつでも使用できます。

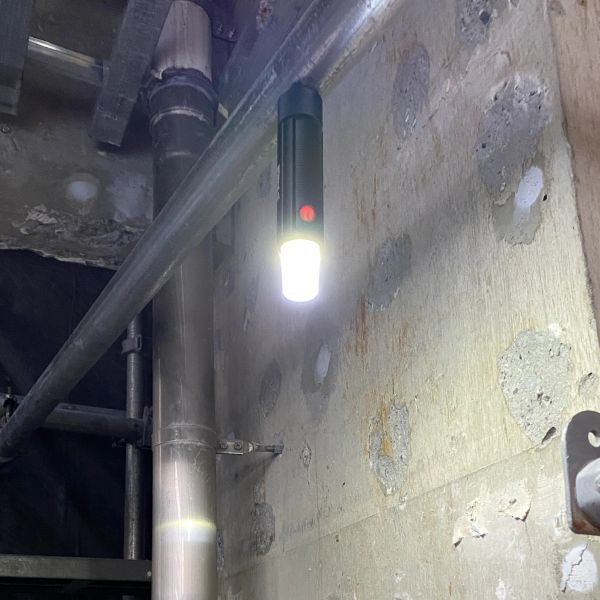

■ 2箇所の強力マグネットで現場に即対応!

■ 明るさ最大1750LM コンパクトボディに驚きの性能!

■ 明るさ最大1750LM コンパクトボディに驚きの性能!

強力マグネットが『本体側面・本邸底面』に搭載。 作業現場の鉄パイプや、倉庫のラックの柱、冷蔵庫等にしっかりと固定でき、両手を離しての作業を可能にします。懐中電灯や、ヘッドランプの様に一定方向だけでなく一面を照らせますので、暗所でもストレスフリーで作業やレジャーをサポートします。

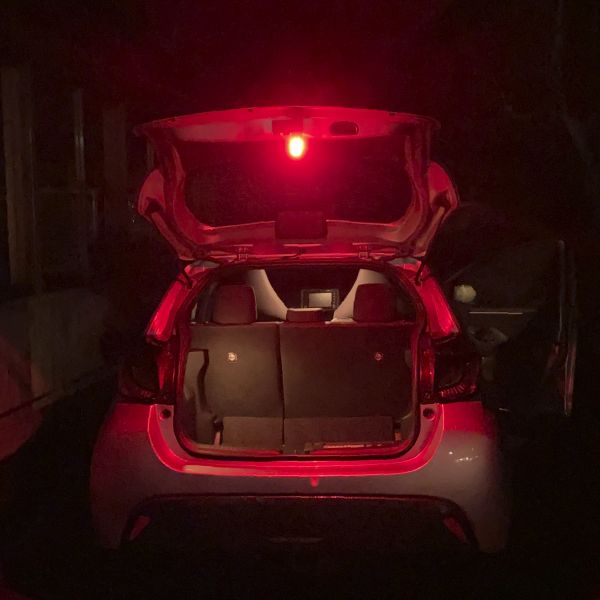

例えば、夜間の車内での探し物。車のバックハッチにピタッとセットすれば、まるで室内灯のような明るさの元で安心して作業が可能です。

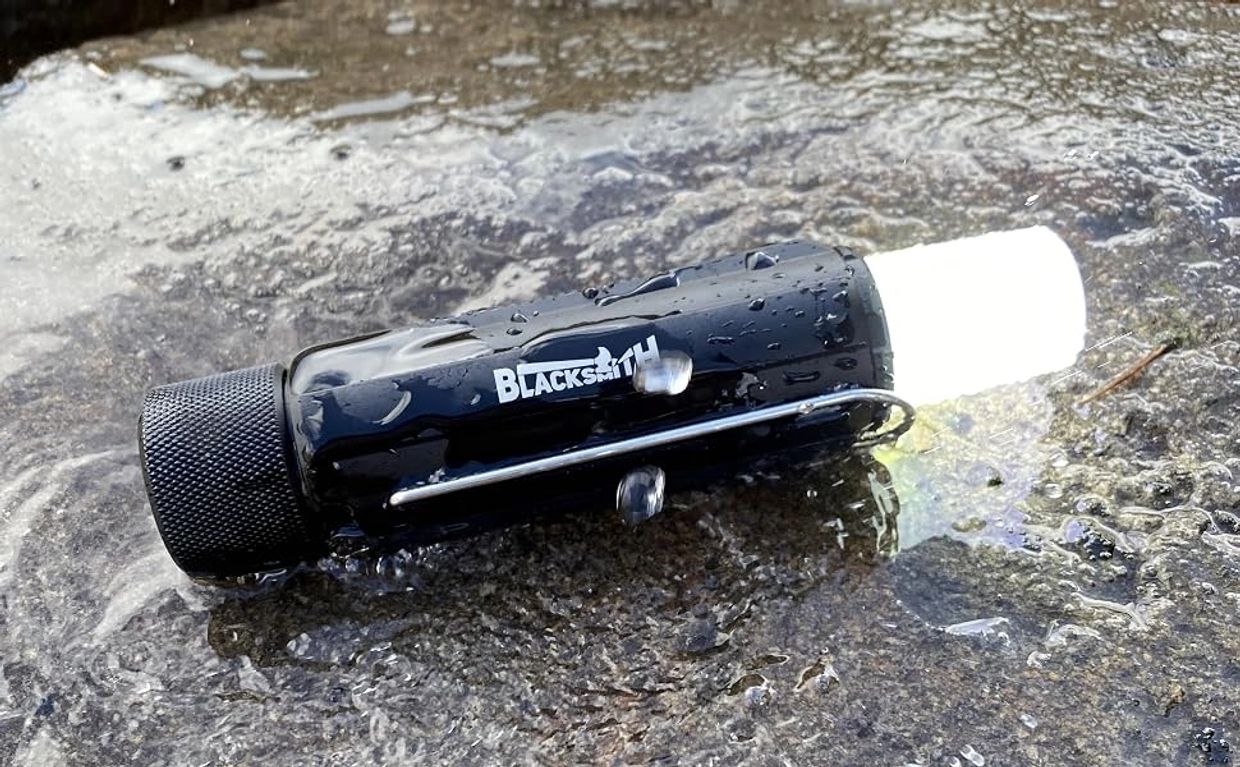

▲ 防水性能IPX7

■ 防水性能 - 主に屋外で使用されるライト製品には大事な要素です。

-防水性能-  主に屋外で使用されるライト製品には大事な要素。

Lightingale Blacksmithの防水性能はなんとIPX7(防浸形)。

IPX7相当とは? 水深1mの水中に電気機器を30分間没し、浸水がないことが確認され、使用に問題がない事を表しています。

さすがにスキューバーダイビングには使用できませんが、ハンディサイズの照明製品では最高クラスの防水性能となっております。

『すごく強い雨が降っているので、灯りが使えない!』なんていう事が無く、どんなシーンでも安心してご使用いただけます。

赤色モードで緊急時にも対応

『数キロ先からも視認できる 赤色LED』こちらのモードでは、

夜間の工事現場や作業現場での先端信号灯として、動線誘導の目印として、また夜間視界の悪い場所での発煙筒の代わりに使用したり。

点滅モード(長押しで切り替え)で、SOS信号として等の緊急時対策、さまざまな用途に対応可能です。

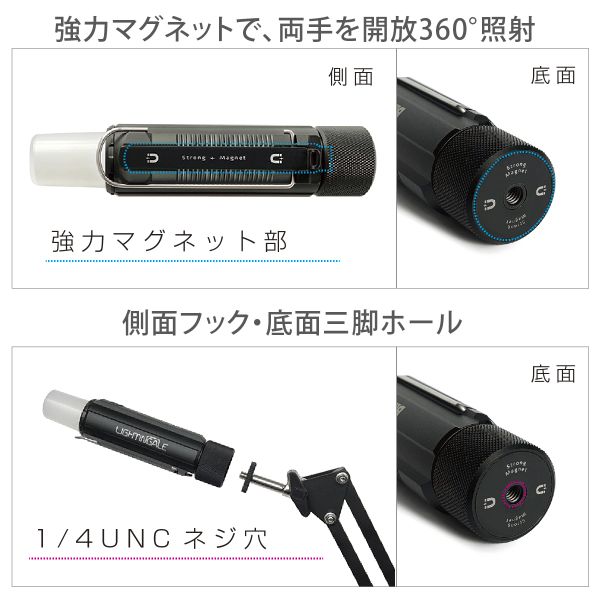

1/4UNC規格ネジ穴搭載

握り心地や、出し入れの際、スイッチングの際のアクセシビリティを追求したこだわりフォルムおすすめのポイントです。

プロユーザーの方々からアドバイスをいただいて開発したさまざまな固定方法で、どんな場面でも役に立つプロ仕様の優れものライトになっております。

(三脚に固定/マグネットで固定/フックで吊り下げ )

メタルシェードで特定個方向のみ照射


全方向照射では迷惑になりそうな場合や、狭い場所での作業で眩しい場合に

特定方向のみ照らしたい場合には付属のメタルシェードを装着すれば、

特定方向だけを照射することができます。

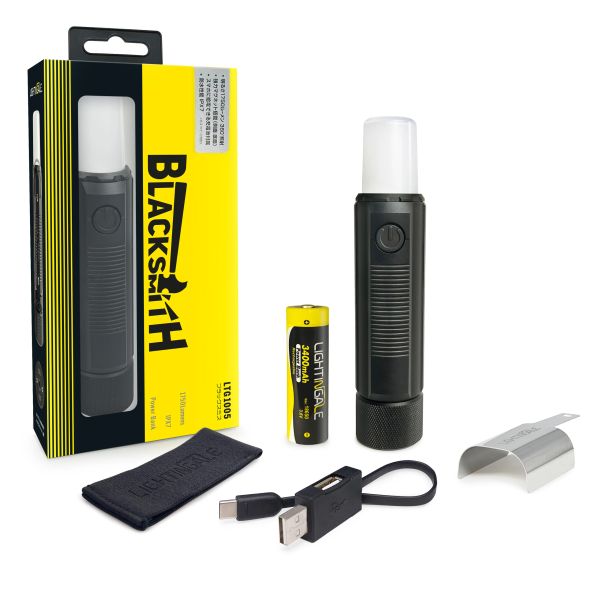

<LTG1005 パッケージ内容>

・LTG1005 Blacksmith本体

・メタルシェード

・LTG0001充電池(3400mAh)モバイルバッテリー機能付

・充電/給電用パワーバンクケーブル

・充電池用ポーチ

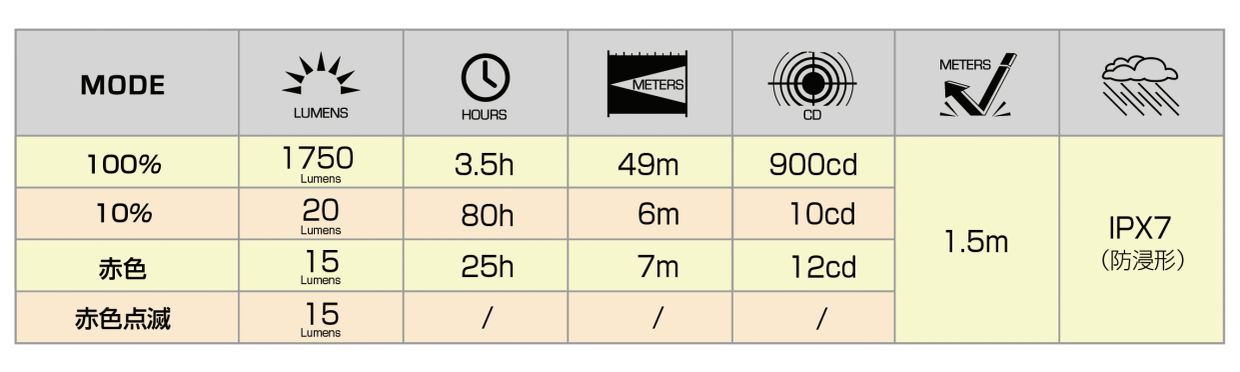

■ 製品仕様 (*ANSI 規格)

※ 型番:

"Blacksmith" (ブラックスミス) LTG1005

※ 使用光源:

High Power Cool White LED / Red LED

※ 明るさ:

1750ルーメン (100%点灯) / 17ルーメン (10%点灯)  / 15ルーメン(赤色点灯)

※ 照射距離:

60M (100%)

※ 点灯時間:

約3.25時間 (100%) / 約80時間 (10%) / 約25時間 (赤色 Red)

※ 使用電源 / Powered By:

LTG0001 3.6V 3400mAh USB-Cポート搭載 リチウムイオン充電池(付属)

(*CR123A × 2 本にも対応)

※ マグネット:

側面/底部に強力マグネット内蔵

※ 防水性能:

IPX7 (防浸形) 相当

※ 外形寸法 / 質量:

153 x 33 x 36mm  / 249g (充電池込み)

▲ LIGHTINGALE®の充電池 USB-C POWER BANK

LIGHTINGALE® Bonfireに付属の充電池は、電池メーカーでもある弊社ならではのパワーバンク機能付きの18650形USB TYPE-Cポート搭載充電池です。


LTG0001 3400mAh 3.6V 充電池付属。


USBの電源があればいつでもどこでも充電でき、いざという時には、スマートフォン等お手持ちのUSB機器に電気を供給することもできます。

■ Not just a lantern, it's also a power bank

LIGHTINGALE® Bonfire includes LIGHTINGALE® original 18650 high-power lithium-ion rechargeable battery with a built-in USB-C charging input/output port, which can turn the battery to become an emergency power supply, it will charge up your USB devices or smartphone with our LIGHTINGALE® LTG0001 battery.


To charge up the Bonfire's battery, simply use any standard USB adapter that comes with your phone via the built-in USB-C port on top of the battery with a proper USB-C cable.


LTG0001 is a 3400mAh 3.6V lithium-ion rechargeable battery.

■ Product Specifications (*ANSI Standard)

※ Model:

"Blacksmith" LTG1005

※ Light Source:

High Power Cool White LED / Red LED

※ Brightness Performance:

1750Lm (100%) / 17Lm (10%) / 15Lm (Red)

※ Beam Distance:

60m (100%)

※ Runtime:

3.25hrs (HIGH) /80hrs (MID) / 25hrs (RED)

※ Powered By:

LTG0001 3.6V 3400mAh USB-C Li-ion Rechargeable Battery w/ USB-C Port


(*CR123A × 2 Supported)

※ Handles:

Top : Rotatable Plastic Handle


Bottom : Detachable Metal Handle

※ Water Resistance Level:

IPX7 Waterproof

※ Size / Weight:

153 x 33 x 36mm  / 249g (Battery Included)

■ FAQ

A : 使用できます。防水性能はIPX7相当となっておりますので、水の中に落としてしまったとしても大丈夫です。


A : 本体を使用していただける環境温度は、- 20度〜60度 で設計されています。

充電池を充電する際・電池を保管される場合には、0度〜45度 の環境で使用できます。


 A : 水洗いしたのち、柔らかい布で拭き取ってください。ちょっと頑固な汚れの場合薄めた中性洗剤で洗うことができます。


A : 充電池に付属の『パワーバンクケーブル』を5V用のUSBアダプターでご使用ください。

推奨充電電力:5V/1A =1ワット

(備え付けのUSBポートや、お手持ちのスマートフォン用のアダプター、お車のシガーソケットタイプ、ノートPCに付属のUSBポート等をご利用ください)


!急速充電器やPC用の高電圧(高ワット)充電器/ケーブルはご使用しないでください!

電池内部の安全装置が過充電を察知して、電池を以後使用できない状態に働きます。


A : 3ヶ月に1度程度充電してください。 長期保管の場合は電池を外して、別途保管していただければ安全です。


電池そのものにUSB-TYPE Cポートが付いておりますので、スペア電池をご用意いただければ、もしもの時には、入れ替えてご使用いただける他小型のモバイルバッテリーとして、ご利用いただけますので大変便利です。


A : はい、電池メーカーである弊社はPSE適合だけでなく、米国・EUROの規定に適合し、日本国内での製品保険等、安全には特に気をつけて取り組ませていただいております。


A : ご購入から1年間の保証制度がございます。正常な使用状態で故障があった場合には弊社にて修理・交換の対応をさせていただいております。


■ FAQ

A : Yes. It has IPX waterproof standard, which should be fine even drop in shallow water for a short period.


A : The working environmental temperature for Bonfire should be between -20°C to 60°C.


The working environmental temperature for charging or storing the rechargeable battery should be between 0°C and 45°C.


 A : First, make sure the battery lid of Bonfire is completely closed. Then simply wash the surface with slow-flowing tap water, you may add a little washing liquid and rub gently with a soft cloth if needed.


A : No. Bonfire's rechargeable battery can be charged with any standard 5V USB adapter that is supplied along with your phones or other devices.


Please only charge by the built-in USB-C port on the battery, with a proper 5V USB adapter and USB-C cable, or with the original cable which might be provided along with Bonfire.


A : Make sure the rechargeable battery will be charged at least once every three months.


For long-term storage, battery should be removed from the product and stored separately. The rechargeable battery should avoid water at all cost if removing from the lantern.


Bonfire and the battery should always be stored in a cool and dry place, and easy to be reached just in case emergency happens.


A : Yes. LIGHTINGALE® rechargeable batteries are not only PSE compliant in Japan, but also compliant with US and EU standards.


A : Yes. There is a one-year warranty system from the date of purchase. As long as the defect is not caused by improper usage or careless handling by the end-user, we will repair or replace our product within the warranty period.
